What Is a Tower Crane? Its Functions and Role in Construction

In construction projects, tower cranes help move heavy materials across large work areas or to different levels of high-rise buildings. These machines improve the efficiency of lifting and transporting materials to specific locations.

Tower cranes reduce manual handling and can place materials in locations that conventional equipment cannot reach. This article provides an overview of tower cranes and their role in construction.

READ ALSO: What Is a Crane? Learn About Lifting Equipment for Construction

What Is a Tower Crane?

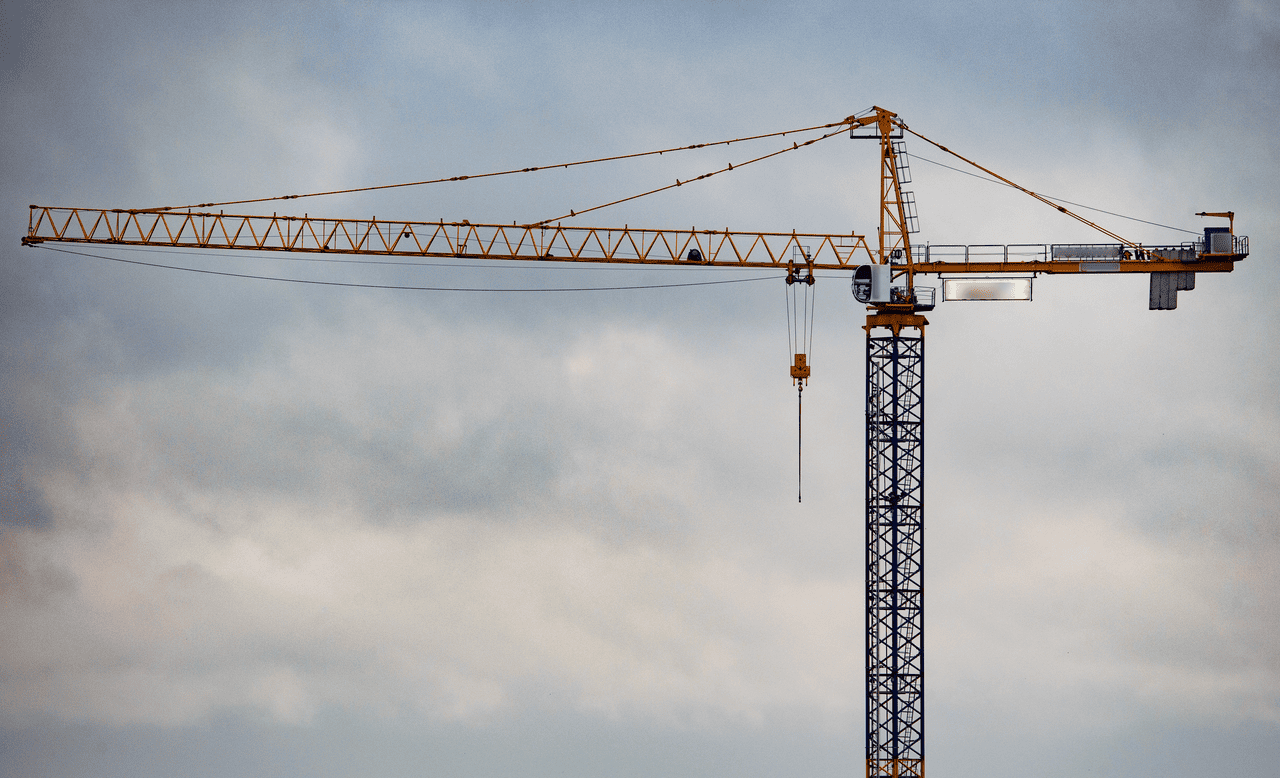

A tower crane is heavy equipment used to lift and move materials both vertically and horizontally on construction sites. Its tall tower and horizontal jib enable it to access various areas of the worksite.

One notable feature of tower cranes is their ability to support construction projects as buildings increase in height. In practice, they are positioned strategically to cover the required work area.

In general, a tower crane can reach heights of approximately 80 meters without additional supports and lift loads of several dozen tons, depending on its specifications. However, its lifting height and capacity vary by model, configuration, and project needs.

What Are the Functions of a Tower Crane?

Using a tower crane can help streamline material handling throughout the construction process. Its key functions are listed below.

• Lifting heavy materials, such as steel, concrete, formwork, and other construction materials.
• Moving materials horizontally from one work area to another.
• Lifting materials to elevated areas during high-rise building construction.
• Reaching a wide work area with a jib length configured to match project requirements.
• Improving operational efficiency by reducing the time and manual effort required to move materials.



The Role of Tower Cranes in Various Construction Projects

Lifting needs vary from one project to another, depending on factors such as project scale, building height, and the materials involved. Tower cranes are used across different construction projects as follows, with each use reflecting a different project need.

1. High-Rise Building Construction

In high-rise building projects, tower cranes are used to lift materials from ground level to upper floors or elevated work areas. They transport structural steel, concrete, formwork, and other components.

2. Infrastructure Development

Infrastructure projects such as bridges, dams, and public facilities often require lifting large structural materials. Tower cranes can be used to move steel structures, girders, and other components into position.

3. Industrial Facility Construction

Industrial facility construction may involve heavy materials and large components such as steel structures, pipes, tanks, and equipment. Tower cranes lift and position these items as required by the construction plan.

4. Projects with Limited Work Areas

Construction sites with limited space require careful planning for equipment and material placement. Tower cranes can help move materials within the work area without the need for extensive ground-level pathways.

What Are the Types of Tower Cranes?

Tower cranes are available in several types, each with distinct features and operating mechanisms. When selecting the right type, consider site conditions, lifting needs, working radius, and project requirements.

1. Hammerhead Tower Crane

A hammerhead tower crane has a horizontal jib shaped like a hammer. It is commonly used for projects requiring a wide lifting range over large areas.

2. Luffing Jib Tower Crane

A luffing jib tower crane has a jib that can be raised or lowered to adjust the working radius. It is suitable for sites with limited space or where multiple cranes operate close together.

3. Self-Erecting Tower Crane

A self-erecting tower crane is designed with an integrated mechanism for erection with minimal external assistance. It is ideal for projects needing short installation times and high mobility.

4. Flat-Top Tower Crane

A flat-top tower crane has a horizontal jib without the raised tower head of hammerhead models. This design offers flexibility when multiple cranes operate in the same area.

5. Top-Slewing Tower Crane

This crane type has a slewing mechanism at the top of the tower, allowing rotation to reach different areas of the site. It is used for projects needing significant lifting heights and capacities.

6. Trolley-Slewing Tower Crane

This type uses a trolley that moves along the jib to adjust the working radius. This mechanism makes it suitable for projects where the material handling range needs frequent adjustment.

7. Fixed Tower Crane

A fixed tower crane is installed on a permanent foundation and remains stationary during the project. It is suitable for high-rise buildings or industrial facilities needing substantial lifting capacity and height.

8. Mobile Tower Crane

Mobile tower cranes can be relocated as needed, unlike fixed models. They offer flexibility for small- to medium-scale projects that require changes in crane positioning.

How to Safely Install a Tower Crane

Installing a tower crane requires careful planning and inspection due to the heavy loads and significant heights involved. Only qualified personnel should install it according to all safety procedures and requirements.

In general, a tower crane installation involves the following steps.

1. Preparing the foundation: Confirm the foundation has adequate strength and dimensions to support the load and meet crane specifications.

2. Assembling the tower: Install mast sections progressively and ensure that each connection is secure and locked.

3. Installing the upper crane assembly: Install the slewing unit, jib, counter-jib, counterweights, and lifting components as specified in the installation procedure.

4. Conducting inspections and testing: Verify all connections, safety systems, lifting functions, and crane movements before operation.

5. Performing a pre-operation inspection: Ensure all components meet safety requirements and the work area is safe for operation.

For certain models, the height of a tower crane can be increased progressively using a climbing system as the building rises.

READ ALSO: Construction: A Key Pillar in Infrastructure Development

Improve Construction Efficiency with Cranes from United Tractors, Part of PT Astra International Tbk

Selecting the right tower crane improves efficiency, safety, and workflow in material lifting operations. Understanding the equipment and requirements is essential for effective project planning.

To support these needs, United Tractors, part of PT Astra International Tbk, offers heavy equipment and supporting services for various industries. Its product portfolio includes heavy equipment, trucks, and cranes, along with after-sales support.

To learn more about available equipment and services, visit United Tractors pages to explore equipment options that meet your project's operational needs.
